Pickit M
Pickit 3D
Description

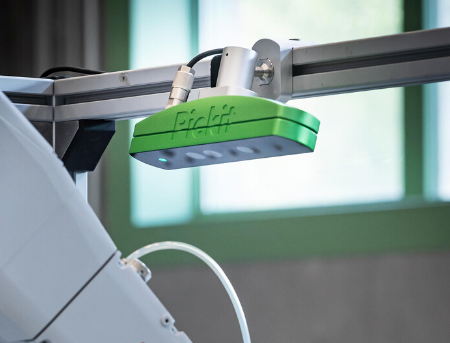

Introducing Pickit M: a plug-and-play 3D camera and software designed for your robot. Pickit M empowers users to automate pick-and-place tasks, ensuring fast, flexible, and precise production with 24/7 reliability. Our integrated artificial intelligence elevates your robot's capabilities, enhancing its intelligence and adaptability.
Pickit M is ideally suited for efficiently picking medium-sized objects from bins, boxes, and tables, as well as handling pallet unloading, machine loading, and assembly operations.
Minimum object size: 50 x 50 x 10 mm
Specifications
Value
Structured light
30 fps
< 3mm
< 1mm
1030 g
M12 (USB) - USB3
TCP/IP over Ethernet
USB3 5VDC
5°C to 40°C
95% @ 40°C (non-condensing)
IP55
Operating, 2 Grms, 5-500Hz, 3 axes
CE, FCC
호환 수준
Status
HCR-3A, HCR-5A, HCR-12A, HCR-14
Easy

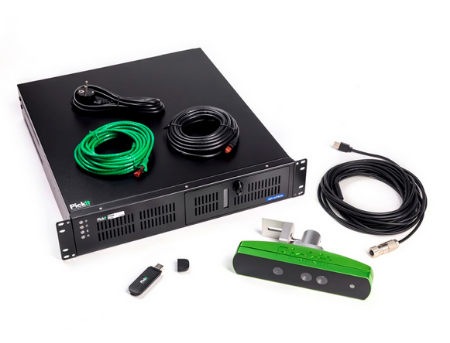

L-bracket mount is include

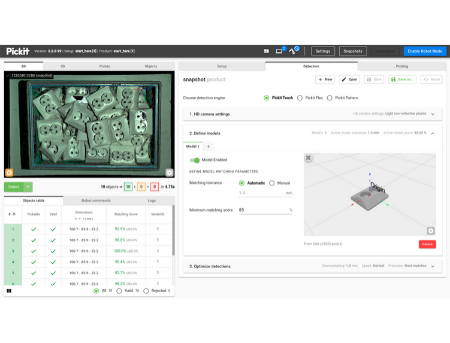

Easy GUI setting on vision PC
Camera-Robot calibration plate and software are included
Compatible robot mounting plate can be ordered
Available
Available
