MT04 CNC ASSISTANT
Mactech
Description

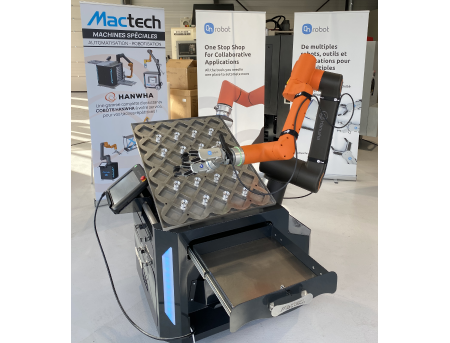

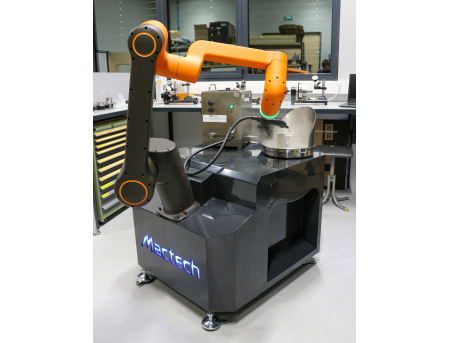

Multifunctional, modular, and compact robot cell designed for CNC loading. The basic module is equipped to accommodate all types of parts and features a removable parts tray. It includes scalable and interchangeable customized trays and can be easily moved thanks to its robust wheels.
Specifications
Value
Body : Steel Table
Top : Stainless inox piece fitting
986 x 828 x 760/990 mm (W x D x H)
355 kg
Drawer for HCR-series Controller box
Drawer for sample piece
Drawer for tools and manuals
Led jack, to Know the state of the robot
Chassis in epoxy paint RAL7021
Programming wtih Rodi in mode Pick & Place
* The MT04 standard includes a mounting support for the HCR-12A and a stainless steel tray with 50 positions, each measuring 73x73mm.
호환 수준
Status
HCR-14, HCR-12A, HCR-5A 1), HCR-3A 1)
HCR-12A bracket mount is included
Available on request
Pre-recorded Pick & Place program
Available
1) HCR-5A and HCR-3A can be used, too. But Robot reach needs to be considered.
