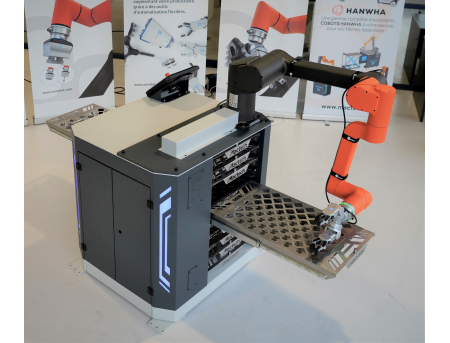

MT05 Loading Table
Mactech
Description
Increase your production capacity with this multifunctional system, designed to automate your repetitive and labor-intensive daily tasks quickly. It features scalable and interchangeable customized trays, specifically designed for heavy items, supporting up to 140kg per load drawer and a total of 1400kg distributed across 10 drawers.
Specifications
Value
Body : Steel Table
Top : Stainless inox piece fitting
980 x 850 x 990 mm (W x D x H)
355 kg
Wardrobe for HCR-series Controller box
Wardrobe for tools and manuals
Led jack, to Know the state of the robot
Chassis in epoxy paint RAL7021
Programming wtih Rodi in mode Pick & Place
* The MT05 standard includes a mounting support for the HCR-12A and a stainless steel tray with 78 positions for drawers sized 45x45 mm, with a height of either 70mm (10 drawers) or 155mm (5 drawers).
호환 수준
Status
HCR-14, HCR-12A, HCR-5A 1), HCR-3A 1)
HCR-12A bracket mount is included
Available on request
Pre-recorded Pick & Place program
Available
1) HCR-5A and HCR-3A can be used, too. But Robot reach needs to be considered.
