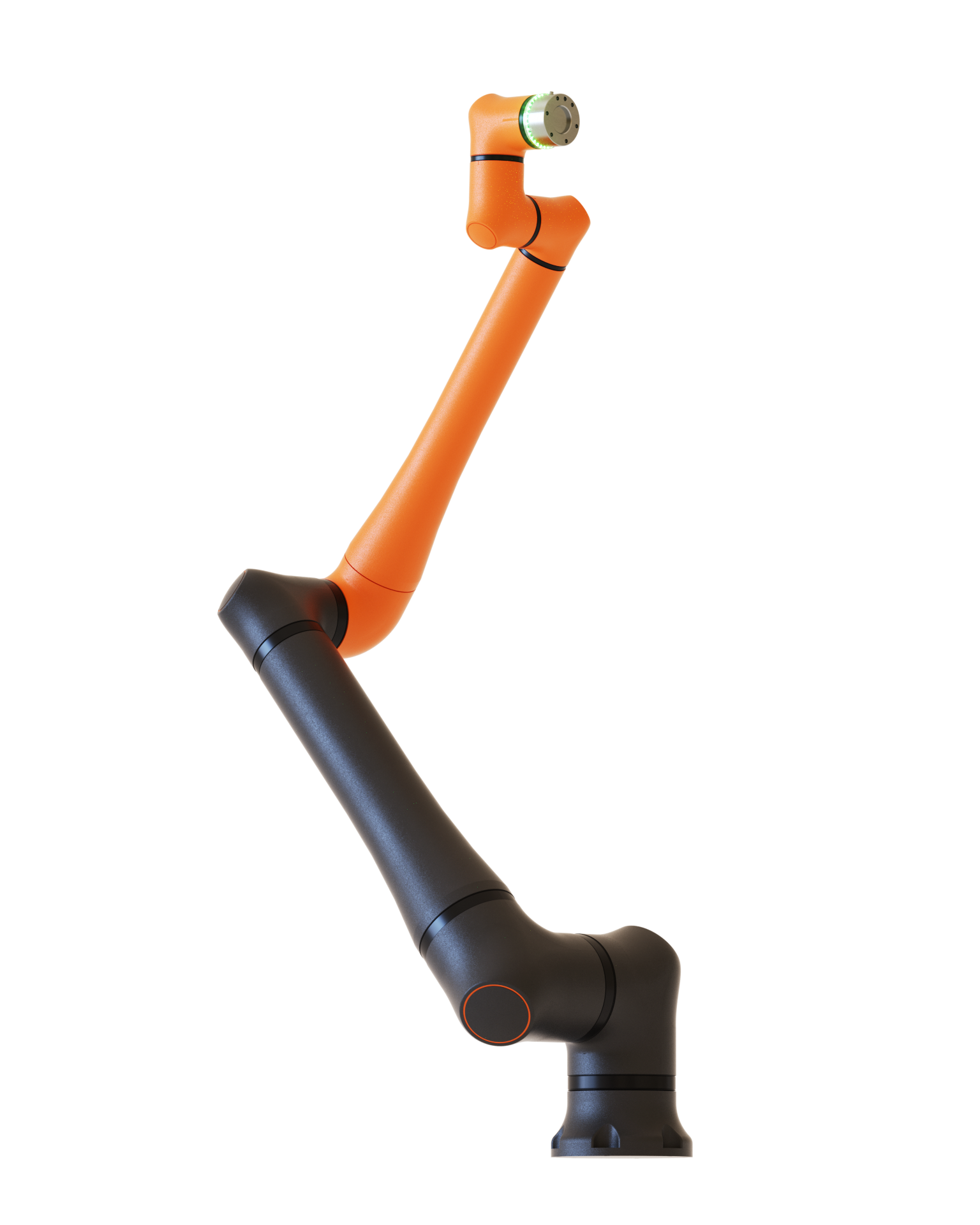

  • HCR-22L 상세이미지

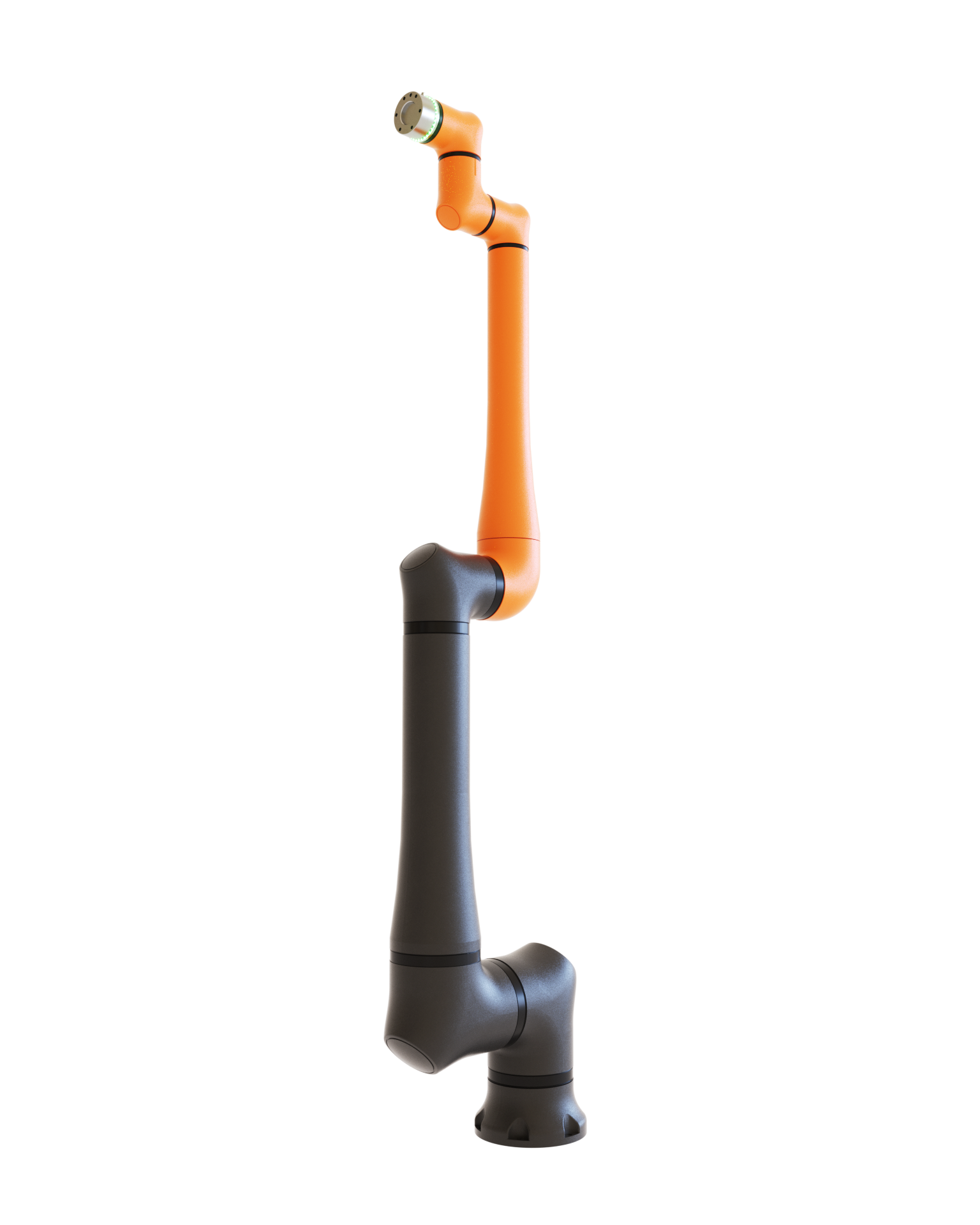

  • HCR-22L 상세이미지

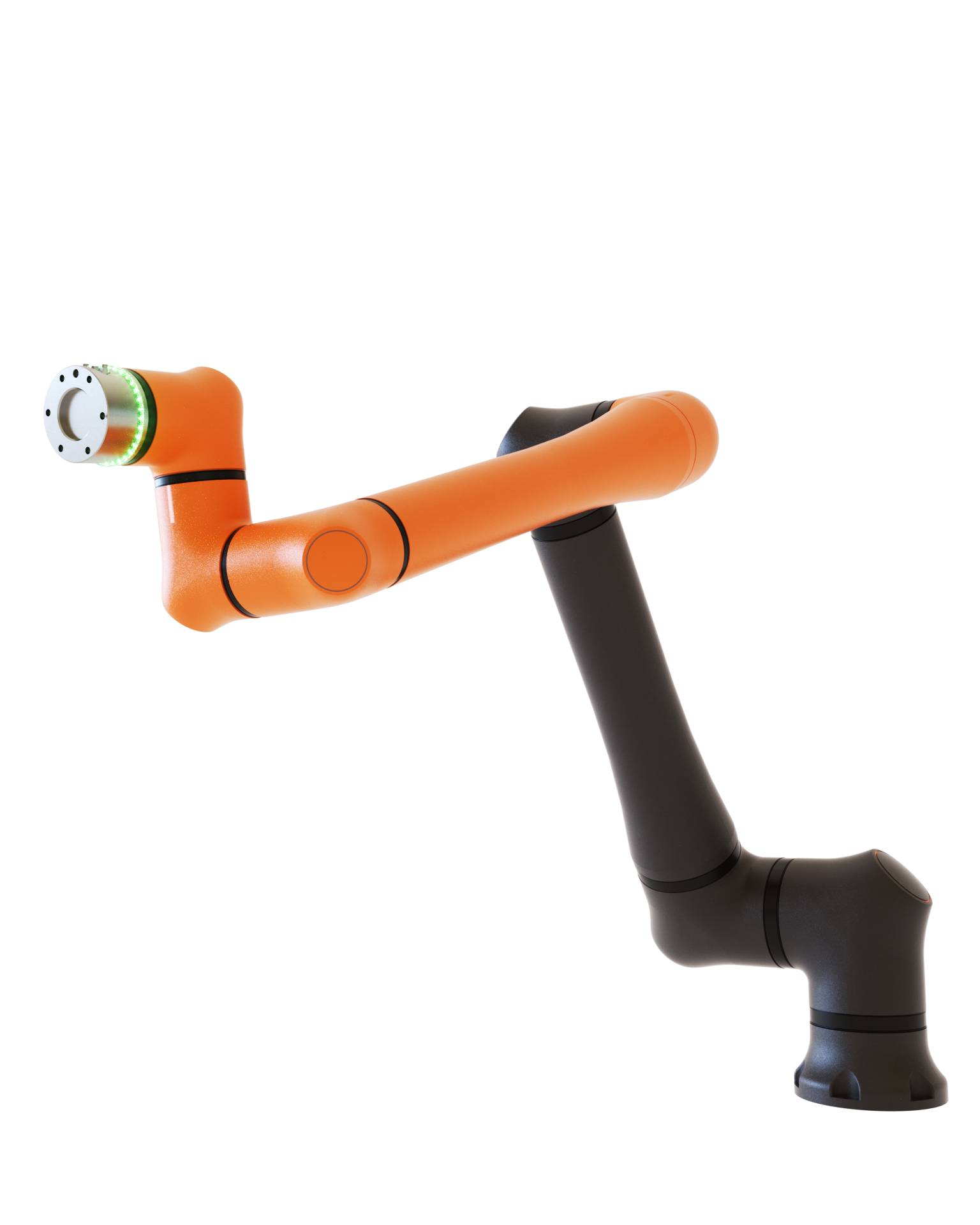

  • HCR-22L 상세이미지

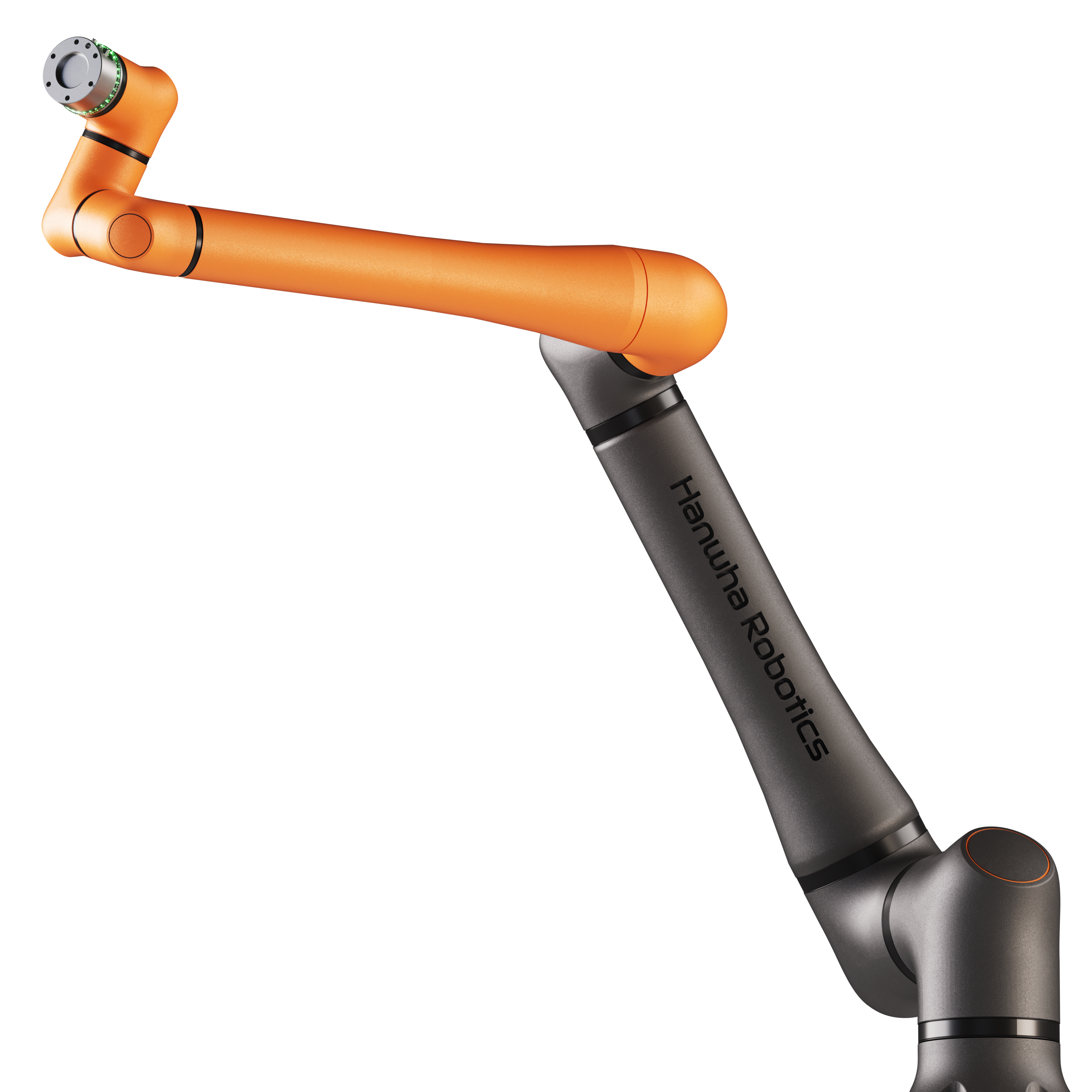

  • HCR-22L 상세이미지

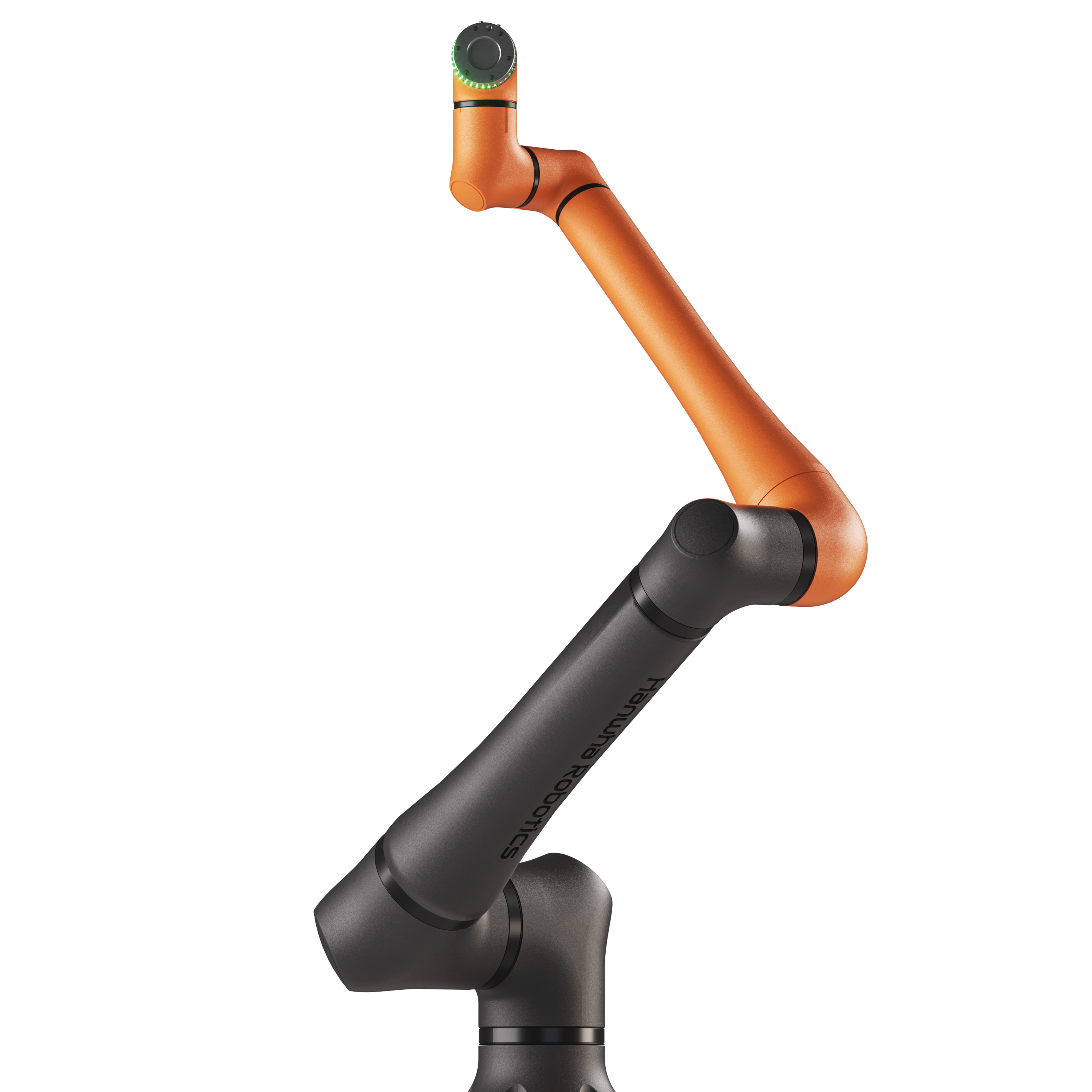

  • HCR-22L 상세이미지
Cobot
HCR-22L

HCR-22L is a 2,000mm Long Reach type product. It is a model optimized for a variety of tasks by increasing the length while increasing the payload.

Payload
22kg
Turn Radius
2000mm
Weight
86kg
Product Inquiry
Specifications
Robot Body

Basic Specifications

Payload 22 kg
Reach 2000 mm
DOF 6

Tool/IO

Tool/IO #1 Connector M8, 8pin, A Coding
Power DC 24V
Digital In 2ch
Digital Out 2ch
Analog In 2ch
Tool/IO #2 Connector M8, 8pin, A Coding
Power DC 24V
Digital In 2ch
Digital Out 2ch
RS-485 2ch
EtherCAT Connector M8, 6pin
DC TX+, TX-, RX+, RX-DC 24V
DC Power Max 3A (1.5A/pin)

Installation

Weight 86 kg
Footprint Ø260 mm
Controller

Basic Specifications

Size (WxHxD) 550x482x251mm
Weight 25.5kg
Power Source 100-240 VAC, 50-60Hz (3.6kW)

Communication Protocols

TCP/IP Yes
Mobus TCP Yes
EtherNet/IP Yes

Internal I/O Ports

Emergency 2 ch ( 4ports)
Safety 2 ch ( 4ports)
Remote Power On/Off Yes / Yes
Digital In Flexible In 8 ch (SINK)
General In 8 ch (SINK)
Digital Out Flexible Out 8 ch (SOURCE)
General Out 8 ch (SOURCE)
* <1.2A/channel
Analog In 2 ch
Analog Out 2 ch
Incremental Encoder In 2 ch
Teach Pendant

Basic Specifications

Size (W x H x D) 343x270x81mm
Weight 1.8kg
Screen Size 12.1inch
Display Resolution 1024x768
Power Switch 1ea
Emergency Switch 1ea
